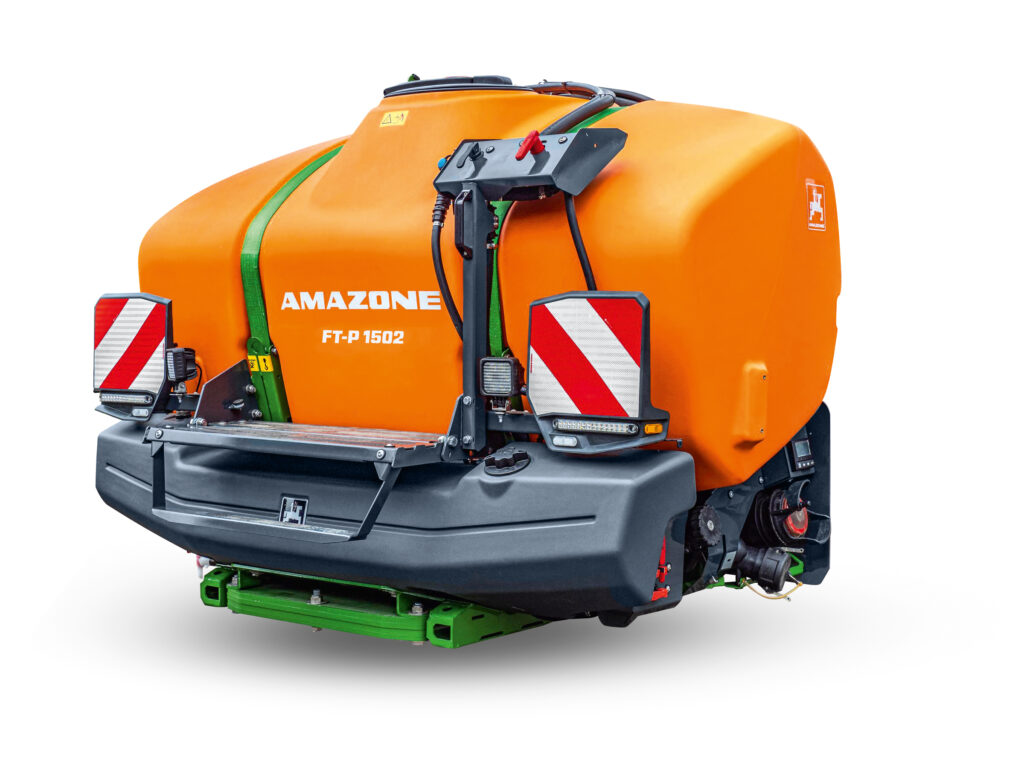

AMAZONE FT-P 1502 Front Tank
Maximum efficiency at unprecedented output.
AMAZONE FT-P 1502 Front Tank
AMAZONE FT-P 1502 Front Tank
AMAZONE has developed the FT-P 1502 self-contained front tank based on the successful technology of the UF 02 crop protection sprayers. The FT-P 1502 front tank is the ideal partner for any application of liquid products. These include hoes with band sprayers, seed drills with liquid fertiliser equipment and many others.
Features
Large spray agent tank and high-capacity pump
Simple, intelligent operation with the SmartCenter
Easy access
The FT-P 1502 front tank with a nominal volume of 1,500 l (actual volume 1,660 l) is equipped with a hydraulically-driven 180 l/min piston diaphragm pump for self-contained use. The oil requirement for operating the pump is 35 l/min.
The operator station of the FT-P 1502 front tank is positioned on the left-hand side and is easily accessible. The operator station can be equipped with the familiar Comfort-Pack of the UF 02 as an option. This includes the TwinTerminal 3.0 for operating the suction side, an automatic fill stop for suction filling, fill level dependent, auto-dynamic agitator regulation and remotely controlled, automatic cleaning programs for quick and thorough cleaning. The FT-P 1502 front tank is equipped with a 180 l fresh water tank that enables efficient cleaning.
Safe and precise metering of plant protection agents and other additives is guaranteed by the large induction device under the large easy-to-open dome cover. The additional step on the large folding platform in front of the spray agent tank makes the induction device very easy to reach. The induction device includes a cleaning pistol, a canister rinse nozzle with a dead man’s handle and a removable stainless steel sieve as standard. The taps for operating the cleaning pistol and the canister rinse nozzle are located directly by the dome cover and are easily accessible. In addition, a storage facility is integrated in the operator station on the tank dome.
Large spray agent tank and high-capacity pump

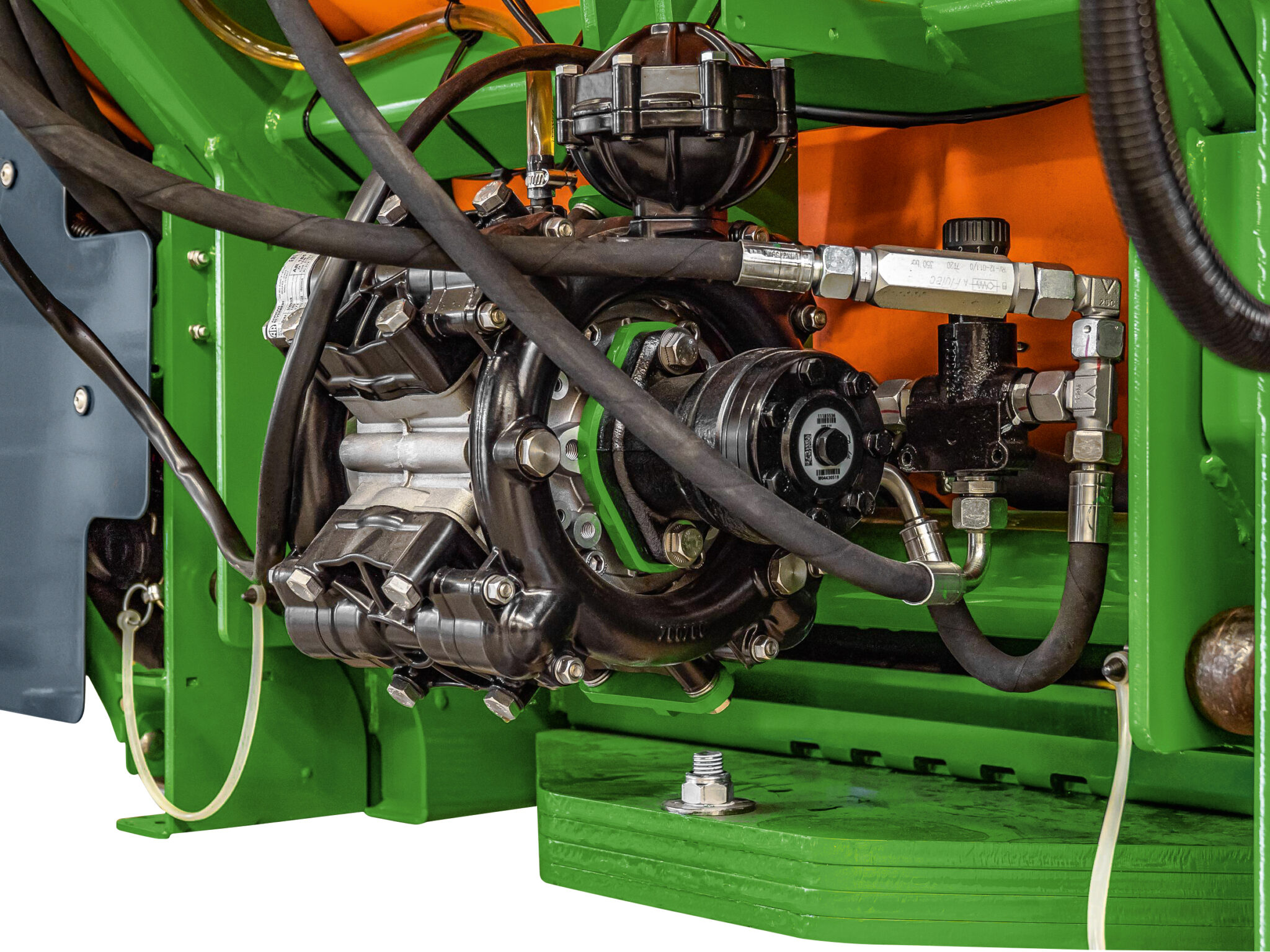

The FT-P 1502 front tank with a nominal volume of 1,500 l (actual volume 1,660 l) is equipped with a hydraulically-driven 180 l/min piston diaphragm pump for self-contained use. The oil requirement for operating the pump is 35 l/min.
Simple, intelligent operation with the SmartCenter
The operator station of the FT-P 1502 front tank is positioned on the left-hand side and is easily accessible. The operator station can be equipped with the familiar Comfort-Pack of the UF 02 as an option. This includes the TwinTerminal 3.0 for operating the suction side, an automatic fill stop for suction filling, fill level dependent, auto-dynamic agitator regulation and remotely controlled, automatic cleaning programs for quick and thorough cleaning. The FT-P 1502 front tank is equipped with a 180 l fresh water tank that enables efficient cleaning.
Easy access
Safe and precise metering of plant protection agents and other additives is guaranteed by the large induction device under the large easy-to-open dome cover. The additional step on the large folding platform in front of the spray agent tank makes the induction device very easy to reach. The induction device includes a cleaning pistol, a canister rinse nozzle with a dead man’s handle and a removable stainless steel sieve as standard. The taps for operating the cleaning pistol and the canister rinse nozzle are located directly by the dome cover and are easily accessible. In addition, a storage facility is integrated in the operator station on the tank dome.
Specifications
1502 |
|
|---|---|
| Tank capacity (L) | 1,580 |
| Nominal volume (l) | 1,500 |
| Empty weight (kg) | 225 |
